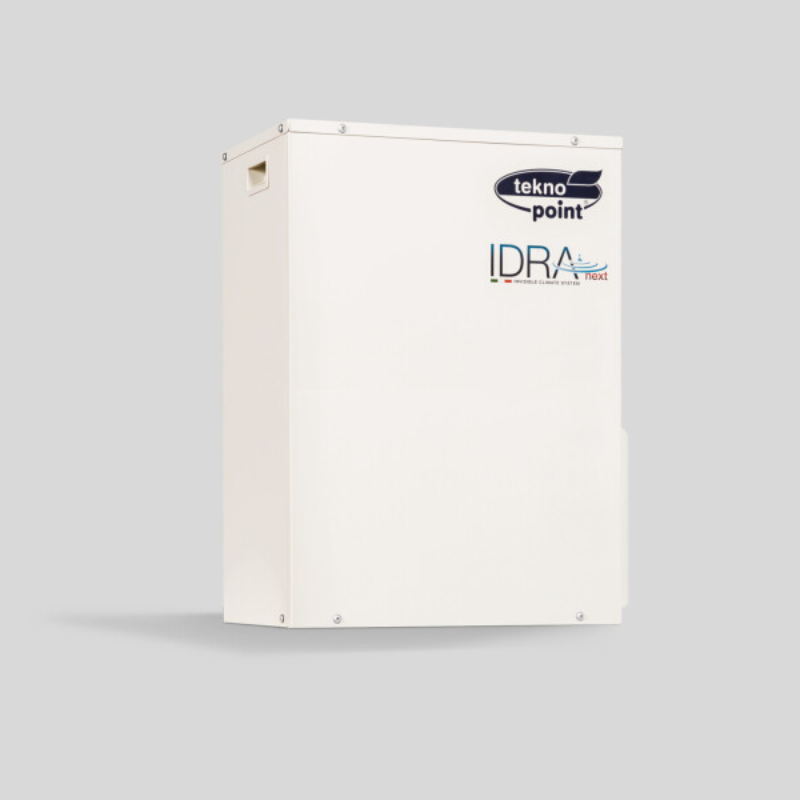

IDRA next Multisplit

The solution to increasingly stringent controls and laws protecting architectural decorum has a name: IDRA next Full Inverter, the invisible air conditioner designed not only for listed buildings, historic buildings and town centres, but also for special installations in small spaces. IDRA next Full Inverter is the invisible water-cooled air conditioner, featuring the latest generation of Panasonic and Mitsubishi DC inverter compressors.

Its small size allows for installation even in very limited spaces. In fact, it can be located in the bathroom, kitchen, inside a cabinet and generally anywhere within the room. In this way, the condensing unit can be completely hidden from view.

Silent, compact and efficient, IDRA next is the top-of-the-range product in the Invisible air conditioner line designed by Tekno Point. This air conditioning system features high COP coefficients.

The new generations of IDRA next feature very high sound insulation, reaching a maximum of 41 dB(A) in the most powerful version.

A high-performance and versatile product, IDRA next is equipped with FULL inverter technology that offers excellent performance in both air conditioning and heating modes. Another point of distinction from the past is its low water and electricity consumption.

Depending on the type of installation, IDRA next Full Inverter consists of different types of indoor units: split, wall-mounted, horizontal or vertical ducted, cassette and console.

IDRA next Multisplit 18

• Mitsubishi compressor
• R32 gas
• Maximum sound pressure: 42 dB(A)
• Cop: W/W 3.97
• dimensions (WxDxH): 500 x 300 x 530 mm
• nominal cooling capacity: 5200/17742 W/BTU/h
• nominal heating capacity: 5200/17742 W/BTU/h
• compatible indoor units: wall-mounted split, ducted, cassette and console units.

IDRA next Multisplit 24

• Panasonic compressor
• R32 gas
• Maximum sound pressure: 42 dB(A)
• COP: W/W: 3.89
• dimensions (WxDxH): 500 x 300 x 670 mm
• nominal cooling capacity: 7000/23884 W/BTU/h
• nominal heating capacity: 7000/23884 W/BTU/h
• compatible indoor units: wall-mounted split, ducted, cassette and console units.

IDRA next Multisplit 36

• Panasonic compressor
• R32 gas
• Maximum sound pressure: 42 dB(A)
• Cop: W/W: 3.91
• dimensions (WxDxH): 500 x 300 x 750 mm
• nominal cooling capacity: 8200/28000 W/BTU/h
• nominal heating capacity: 8200/28000 W/BTU/h
• compatible indoor units: wall-mounted split, ducted, cassette and console units.

PDc system ideal for cooling, heating and dehumidifying flats, offices, historic centres, listed buildings and anywhere where it is not permitted to install condensing units externally.
