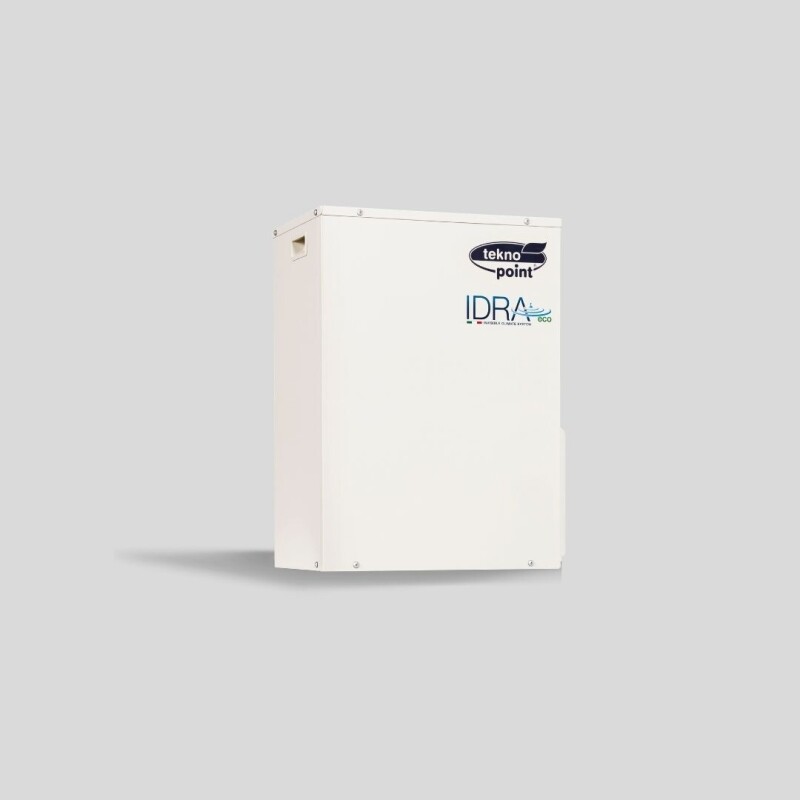

IDRA Eco Multisplit

Invisible water-to-air air conditioner, heat pump with concealed DC Inverter condensing unit.

IDRA Eco is the invisible air conditioner designed not only for listed buildings, historic buildings and historic centres, but also for special installations in small spaces. Characterised by a high energy class and a high COP coefficient, this air conditioner is fully eligible for tax deductions and the Conto Termico 2.0 energy saving scheme. The Idra Eco version combines an excellent standard of living comfort with very low energy consumption. Its small size allows installation even in very limited spaces. In fact, it can be located in the bathroom, kitchen, inside a cabinet and generally anywhere within the room. In this way, the condensing unit can be completely hidden from view.

The new generations of IDRA Eco feature very high sound insulation, reaching a maximum of 42 dB(A) in the most powerful version.

A high-performance and versatile product, IDRA Eco is equipped with FULL inverter technology that offers excellent performance in both air conditioning and heating modes. Depending on the type of installation, it can be combined with different types of indoor units: split, wall-mounted, horizontal or vertical ducted, cassette and console. On request, the indoor units can be controlled via smartphone and are compatible with the latest home automation systems.

IDRA Eco DUAL 18

• Panasonic compressor
• R32 gas
• Energy class in cooling mode: A+++
• Energy class in heating mode: A++
• Maximum sound pressure: 42 dB(A)
• Cop: W/W 4.73
• dimensions (WxDxH): 500 x 300 x 530 mm
• nominal cooling capacity: 5200/17742 W/BTU/h
• nominal heating capacity: 5200/17742 W/BTU/h
• compatible indoor units: wall-mounted split, ducted, cassette and console units.
• Eligible for the 2.0 thermal account and tax deductions.

IDRA Eco TRIAL 24

• Panasonic compressor
• R32 gas
• Energy class in cooling: A+++
• Energy class in heating: A++
• Maximum sound pressure: 42 dB(A)
• COP: W/W: 4.55
• dimensions (WxDxH): 500 x 300 x 670 mm
• nominal cooling capacity: 7000/23884 W/BTU/h
• nominal heating capacity: 7000/23884 W/BTU/h
• compatible indoor units: wall-mounted split, ducted, cassette and console units.
• Eligible for the 2.0 thermal account and tax deductions.

IDRA Eco QUADRISPLIT 28

• Panasonic compressor
• R32 gas
• Energy class in cooling: A+++
• Energy class in heating: A++
• Maximum sound pressure: 42 dB(A)
• Cop: W/W: 4.53
• dimensions (WxDxH): 500 x 300 x 750 mm
• nominal cooling capacity: 8200/28000 W/BTU/h
• nominal heating capacity: 8200/28000 W/BTU/h
• compatible indoor units: wall-mounted split, ducted, cassette and console units.
• Eligible for the 2.0 thermal account and tax deductions.
