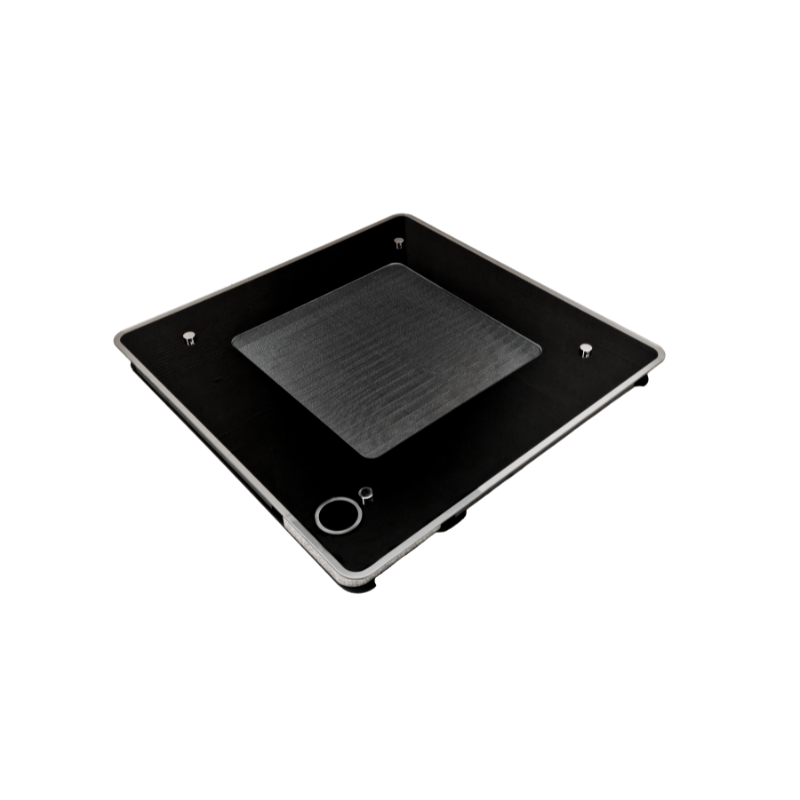

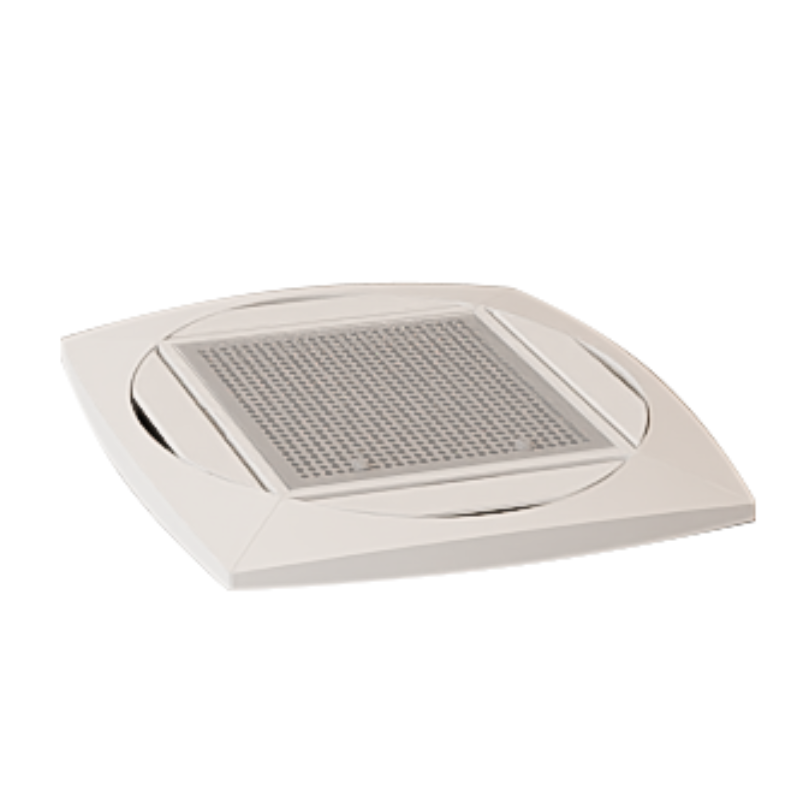

Hydronic Cassette - Black Box

BLACK BOX hydronic cassette units with brushless DC motors represent a cutting-edge solution, designed to ensure maximum efficiency, extreme silence, and intelligent control.
The EPP structure ensures excellent thermal insulation, eliminates condensation, and significantly reduces noise, while the advanced electronics, equipped with Wi-Fi connectivity, app control, and a standard ModBus protocol, allow for complete, intuitive, and integrated system management.

Motor

• High‑efficiency brushless DC motor

• Available versions: 3‑speed or 0–10 VDC modulating

Structure

• Load‑bearing EPP casing with thermal resistance

• High thermal insulation (U‑value lower than insulated metal structures)

• Noise reduction of 3–6 dB(A) compared to traditional products

• No external condensation, even with relative humidity up to 90%

Electronics and Control

• 0–10 VDC motor driver

• 3 speeds + automatic mode (dedicated version)

• Control of ON/OFF or 0–10 VDC modulating valves

• Wi‑Fi with dedicated App and ModBus as standard

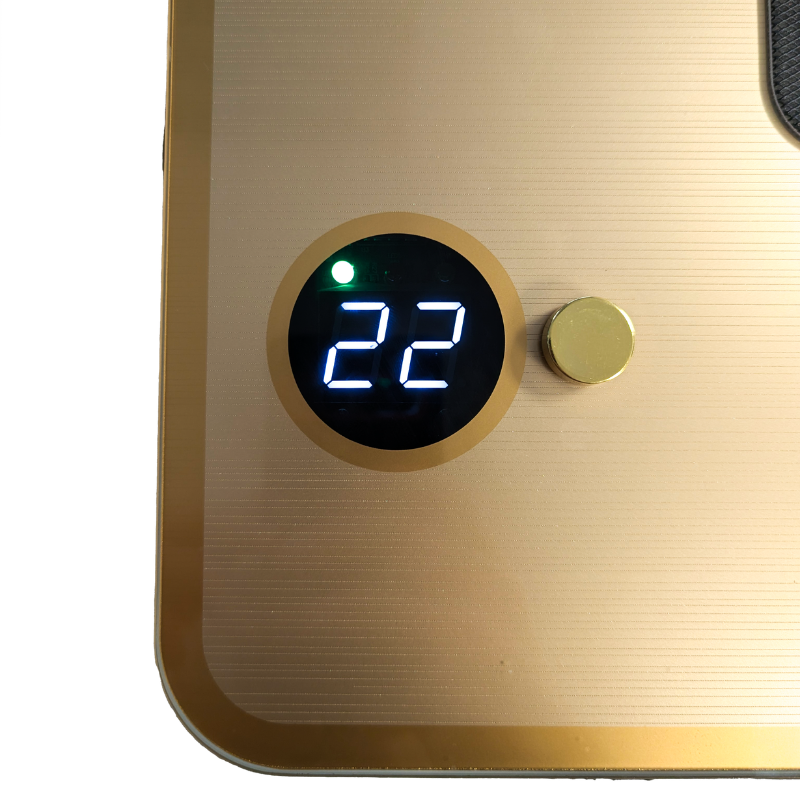

• Water temperature display for quick diagnostics

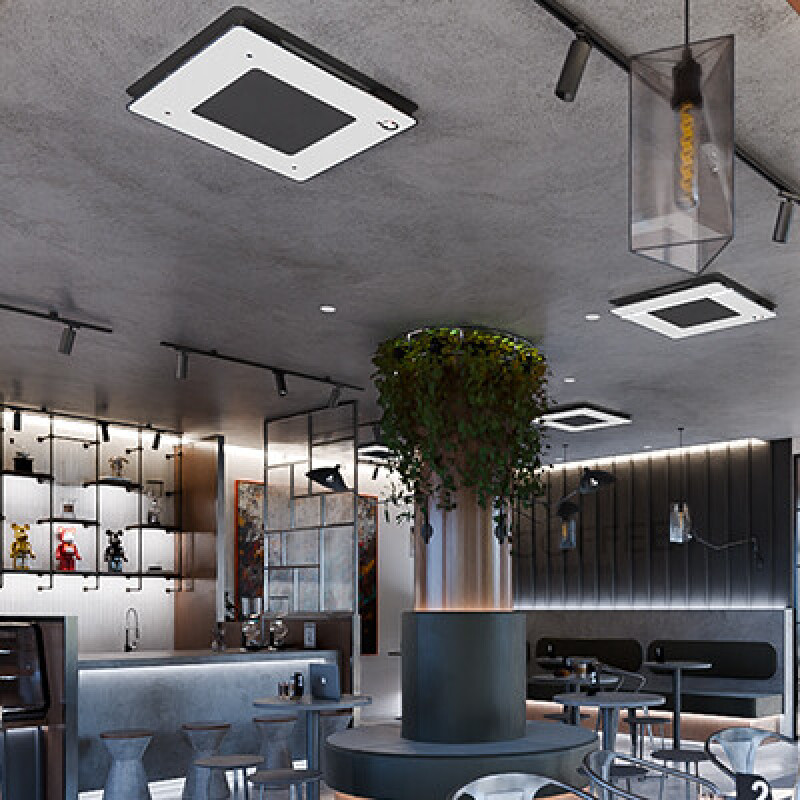

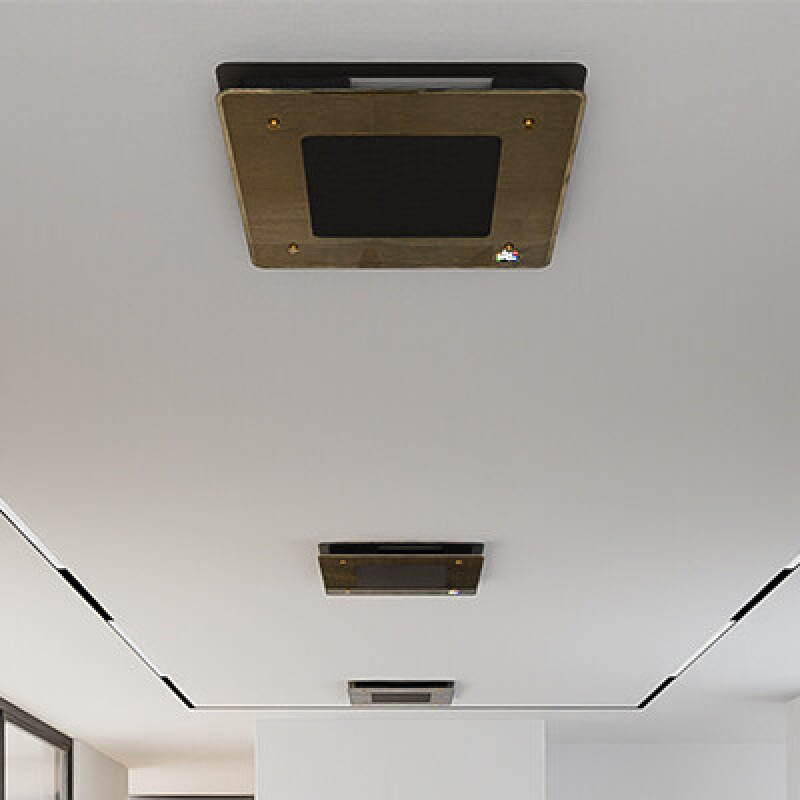

The BLACK BOX hydronic cassettes are the ideal solution for summer and winter air‑conditioning systems in residential, tertiary, and commercial applications. Thanks to their very low noise level, advanced control electronics, and zone management capability, they are perfectly suited for homes, offices, hotels, hospitality facilities, and professional environments, ensuring optimal comfort and high energy efficiency in any application context.

Applications

• Retail

• Ho.Re.Ca. (Hotels, Restaurants, Cafés)

• Business centers and offices

FIND OUT MORE - WATCH THE VIDEO NOW
