EVOTRON, Circulators in energy efficiency class A

EVOTRON circulators, with permanent magnet synchronous motor and frequency converter for real energy saving.


Thanks to the advanced technology employed, the permanent magnet synchronous motor, and the frequency converter, the new range of EVOTRON circulators ensures high efficiency in all applications, bringing appreciable benefits in terms of energy saving.

That‘s why the entire series of EVOTRON circulators is included in energy efficiency class A. The circulator features an electronic device that detects the changes demanded by the heating system and automatically adapts circulator performance accordingly, always ensuring optimal efficiency and minimum energy consumption.

Straightforward operation and an easy-to-ready control panel with display that shows the selected setting at each moment of operation.

Improved and optimized energy consumption overnight (SMART SLEEP Function).

Supplied with a special connector that enables simple and quick electrical Connections on installation.

Supplied with an insulation housing kit which adds significantly reducing in heat dispersion.

Technical features

Operating range: from 0,4 to 4,2 m3/h with head of up to a 8 mt
Liquid temperature range: from -10°C a +110°C
Maximum working pressure: 10 bar (1000 kPa)
Protection rating: IP 44
Insulation class: F
Standard voltage input: single-phase 1 x 230 V / 50 / 60 Hz
Liquid quality requirements: clean, free of solids and mineral oils, non-viscous, chemically neutral and approximating the properties of water (max. glycol contents 30%)


Available documents

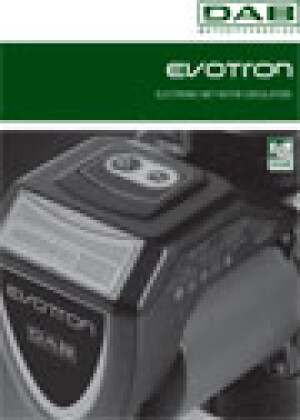

EVOTRON - Electronic wet rotor circulators
Commercial files - EN
