The new FS MULTI range of Panasonic air conditioners, designed for the world of professional combines the highest level of performance and design
A range of variable flow VRF models designed for air conditioning in residential and commercial settings which introduces the elegant Etherea indoor units in the industrial world.
FS Multi series air conditioners combine the experience gained from Panasonic in the field of industrial air-conditioning with the previous Urban Multi series and the VRF R410A technology.
Ideal for commercial, industrial or residential buildings, the Multi FS series has the advantage of being able to connect indoor units with Etherea design wall, giving industrial environments a refined and exclusive.

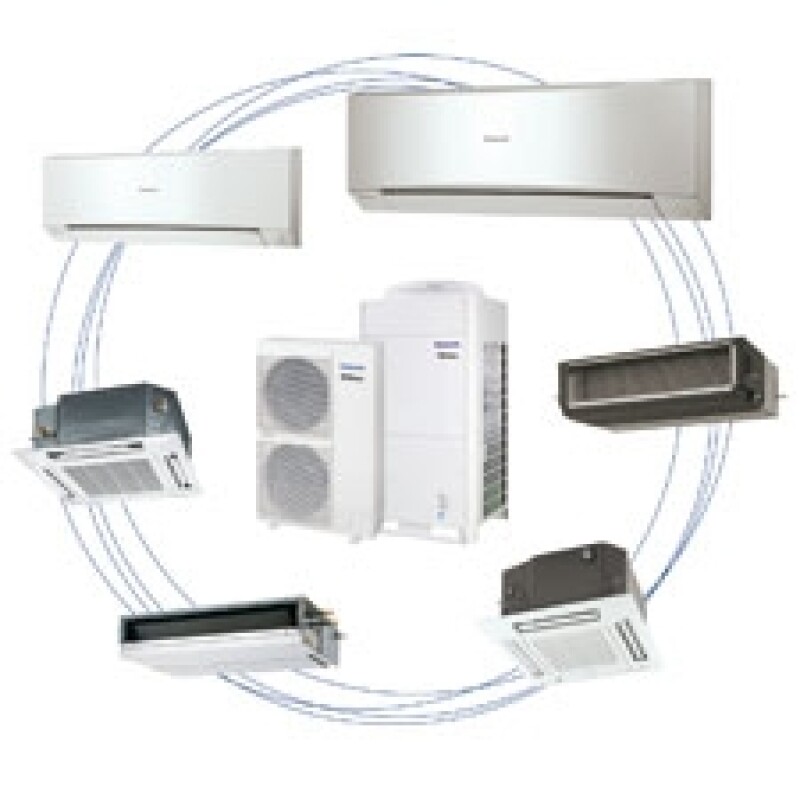

FS MULTI systems allow you to connect up to six different types of indoor units: Etherea silver or white wall, boxes of 60x60 or 90x90, low height hideaway, channeled to high pressur.
Internal drives
Internal drives have even more features, the most important the possibility of being controlled remotely via an infrared remote control with a wired remote control, timer and a net weekly schedule by which you can optimally control temperature and energy efficiency in various environments. In addition, the innovative automated control, the Panasonic Urban Controller allows you to centrally manage all internal drives.
External drives
Outdoor units are available with single phase power into three types: 4, 5, 6 HP and two new types of three phase: 8 and 10 HP.
For each external drive 4, 5 and 6 HP can be connected up to 8 indoor units with a combined capacity that can range from 5.6 kW to 20.2 kW and a maximum difference in elevation between outdoor unit and indoor units of 30 meters.
For each outdoor unit from 8 to 10 HP can be connected up to 16 indoor units with a combined capacity that can range from 11.2 kW to 36.4 kW and a maximum difference in elevation between outdoor unit and indoor units 50 meters.
The length of connecting pipes may be up to 90 meters in single-phase outdoor units up to 300 meters in three-phase outdoor units, so you can adapt the configuration of air conditioning system to any type of architecture, both during construction and renovation.
