Rialto Kit Thermo: standard Kit for Rialto systems

Standard Kit for Rialto systems. Wi-Fi smart chrono thermostat programmable via App to manage winter/summer climate at home and at work.

Description


Managing energy usage in your home has never been easier!

Making life easier for people thanks to technology, improving comfort and optimizing energy use. Rialto does all of this: it makes running of the home that much easier by reducing energy usage, thanks to a perfect combination of electronic devices, Apps and smart functions.

Description

Rialto Thermo Kit replaces traditional wall-mounted thermostat and chrono thermostat in a quick and easy way. Easy to install and to use, Rialto is the ideal solution to manage air conditioning (even multi-room systems) comfortably from the App, both at home and from remote location.
Complete with integrated summer/winter function, Kit Thermo perfectly suits to all existing systems: heating with water-filled radiators, underfloor coils, electric radiators and/or infrared radiant panels, heat pump and pellet stoves.
Rialto system is expandable up to 32 devices allowing the energy management at home and at work in several rooms, even on many floors.

How it works

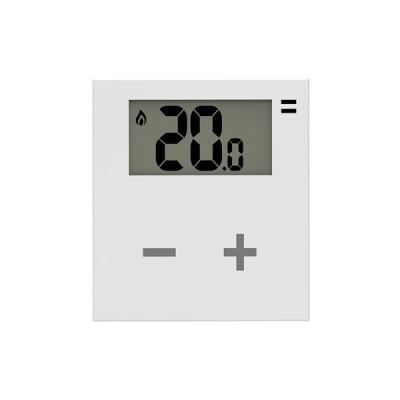

Rialto Smart Thermostat is a wireless universal thermostat, because it uses the connections of the old thermostat or existing system and it is battery-powered.
After installation, the WhiteBox control unit must be connected to the ADSL modem with an Ethernet cable; the Smart Thermostat is associated to the gateway with a short configuration procedure from the “Rialto” App. In few simple steps, the thermostat is already working and programmable from the smartphone according to the user’s needs.

Thanks to the remote control from the App, Kit Thermo improves domestic comfort and it optimize consumptions, activating the heating/ cooling system only when needed and avoiding energy wastes due to unexpected events, even when far from home. The daily / weekly programming is extremely flexible and it can be set according to the user position (geolocation function).

Thermo Kit includes:
  • 1 Rialto Smart Thermostat, wireless thermostat monitored via App
  • 1 Rialto WhiteBox, communication control unit of Rialto system
  •  “Rialto” App for iOS or Android smartphone / tablet

Technical features


Main characteristics of Rialto Smart Thermostat
  • Intuitive: user-friendly from installation to use
  • Easy to use and to configure
  • Universal: it can replace any traditional thermostat because it is battery-powered
  • Complete: all status indicators are visible
  • Multi-room: managed by many thermostats from the same App and the same WhiteBox control unit (supplied)
  • Multi-user management, even from remote location: the system can be monitored by many users installing the App on several smartphones
  • Display of consumptions with charts on status and temperature trends
  • Bistable relay command with dry contact (max 5A @ 230V)
  •  (NC-C-NO) terminal for managing also systems with zone valves
  • 100% Designed & Made in Italy
Special functions
  • Keypad lockout function
  • “Cascade” connection between the Smart Thermostat and other Rialto devices to activate electrical devices depending on room temperature (i.e. electric radiators, radiant panels, pellet stoves and fans)
  • Geolocation function to activate heating / cooling depending on your position
  • OFF function to switch off the thermostat during idle periods
Compatible products

The Rialto system can be expanded adding one or many of the following devices (up to 32):
  • Rialto Smart Thermostat: wireless smart thermostat for managing multi-room heating/ air conditioning
  • Rialto Smart Plug: wireless plug with energy meter for programming household appliances (i.e. washing machine, electric radiators)
  • Rialto Smart Switch: wall-mounted wireless relay with terminals and energy meter to activate and program electrical loads
  • Rialto Smart Relay: wireless dry contact relay for remote control of all devices with digital input (i.e. pellet stove)
  • Rialto Smart Meter: wireless energy meter to monitor consumption on a single-phase line up to 15 kW (i.e. fuse board, electricity meter, light line)

Applications


Rialto for climate control

Whatever type of heating system you happen to have installed, with Rialto you can turn it into a smart heating system.
Better still: with the integrated summer/winter control function, you can manage both your heating and air conditioning systems using a single thermostat, and just one App.
  • Traditional heating with water filled radiators
  • Heating with underfloor coils
  • Heating with electric radiators and/or infrared radiant panels
  • heating / cooling with heat pump
  • heating with pellet stoves (operation piloted by outdoor thermostat)
Non only smart home: Rialto for business applications too

The Rialto system allows management of climate control and electricity usage with maximum flexibility even in situations other than the home environment:
  • offices
  • hospitality structures (B&B, holiday farms, small hotels)
  • commercial premises (shops, restaurants, beauty centres, etc.)
  • small-medium enterprises
