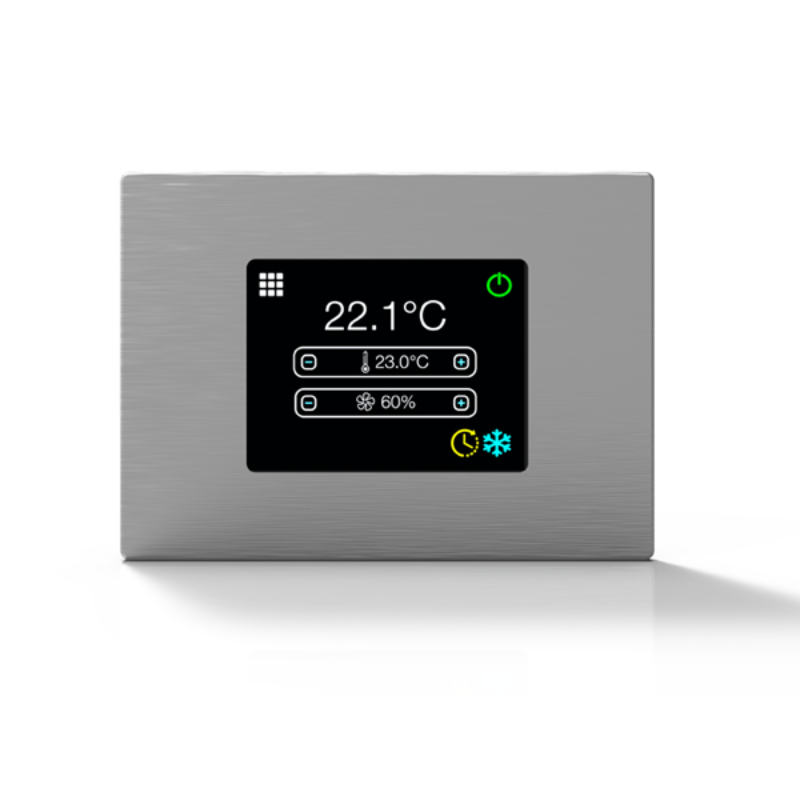

Microprocessor controller with remote touchscreen user interface.


The evolution of Galletti microprocessor controllers has now led to a common platform for all “comfort” products in the Galletti catalogue, resulting in refined strategies for controlling and adjusting indoor units and minimizing the cost and impact of installation thanks to the design, as the user interface is separated from the power components.

The remote touchscreen user interface EVO-2-TOUCH matches with circuit board EVO BOARD.

Intelligent interface

The various screens are designed to make human-machine communication intuitive. Each page contains a few essential items of information that allow the consultation of the unit’s main operating parameters and enable the initial control configuration according to system requirements.

Smart touch

Touch screen technology is another element whose goal is to simplify the user experience. The tap and swipe functions make the control experience similar to that of your smartphone.

Main functions

-Air temperature adjustment through automatic step regulation of fan speed or by modulating the fan speed.

-Regulation of air temperature via fan on-off control (fan runs at a fixed speed)

-Control of On-Off or modulating valves for two or four-pipe systems

-Control of heating element for auxiliary heating

Cooling/heating switching in the following modes:

-Manual, on the unit

-Remote, manual (centralised)

-Automatic, depending on water temperature

-Automatic, depending on air temperature

-Dehumidify function

-Serial Communication Hourly programming operation

Technical features

  • 2.8’’ capacitive touch screen display
  • Integrated temperature probe
  • Low-voltage power supply drawn from the power component
  • Wall mounted or ART-U on-board installation
  • Designed for the main electrical connection boxes
  • User-friendly
  • Aluminium foil and polyethylene frame with various chrome plating options
