Elfo Monosplit

ELFO: The Silent and Efficient Air Conditioner Without an Outdoor Unit

Cool, heat and dehumidify with a single device! ELFO is the heat pump air conditioner without an outdoor unit, ideal for flats, offices, commercial premises and historic town centres. Perfect for listed buildings, where the installation of an external unit is not permitted. It allows you to air condition rooms in accordance with architectural requirements and with high technological standards.

• Compact and discreet design

• Maximum silence and energy efficiency

• Perfect integration with internal wall-mounted, ducted, console or cassette units

Advanced technology and easy installation

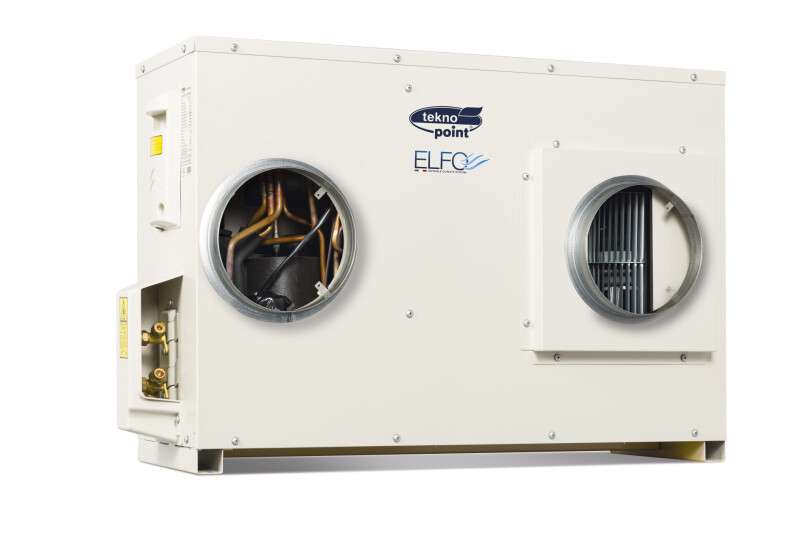

ELFO is equipped with an internal Full DC Inverter condensing motor, which guarantees high performance with low consumption. Externally, only two small 20 cm diameter grilles are visible, thanks to the centrifugal fans that draw in the air necessary for the air conditioner to operate without an outdoor unit.

Elfo monosplit 12,000 BTu/h 3.5 kW

• Panasonic compressor
• three-speed fans
• R32 gas
• 2 Ø200 mm holes
• dimensions (WxDxH) 786 x 315 x 558
• nominal cooling capacity: 3500W
• nominal heating capacity: 3500W
• compatible indoor units: wall-mounted split, ducted, cassette and console units.

Elfo monosplit 18,000 BTu/h 5.1 kW

• Mitsubishi compressor
• three-speed fans
• R410/R32 gas
• 4 holes Ø200 mm
• dimensions (WxDxH): 1124 x 456 x 700 mm
• nominal cooling capacity: 5275W
• nominal heating capacity: 5570W
• compatible indoor units: wall-mounted split, ducted, cassette and console units.

PDc system ideal for cooling, heating and dehumidifying flats, offices, historic centres, listed buildings and anywhere where it is not permitted to install condensing units externally.
