FITT Agix Smart Box

Box for distributing fresh air to living spaces or extracting stale air from humid rooms.

The inclusion of new integrated magenta self-threading caps allows users to easily adjust the number and position of the connections by simply swapping the caps.

• Made entirely of 3 mm thick anti-condensation PVC

• Internally lined with a 10 mm polyester fiber panel, coated with a self-extinguishing protective film, waterproof and resistant to oils and dust

• Externally insulated with 3 mm expanded polyethylene

• The boxes feature a main PP connection with gasket (Ø125–Ø160 or Ø160–Ø180, depending on the model), to be connected to the ventilation unit via a rigid or flexible duct (optionally with a silencer, not included but recommended)

• Wall or ceiling installation via 4 adjustable “L” brackets and included self-threading screws for PVC

• For distribution to individual rooms, the boxes have PP "Grey" connectors for semi-rigid round ducts (Ø75 or Ø90, depending on the model)

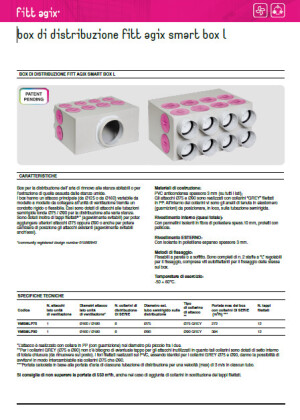

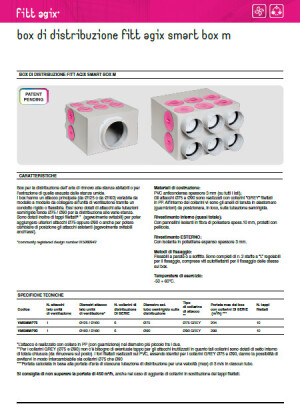

FITT Agix Smart Box is available in three different sizes: S, M, and L.

Community Registered Design No. 015060943
