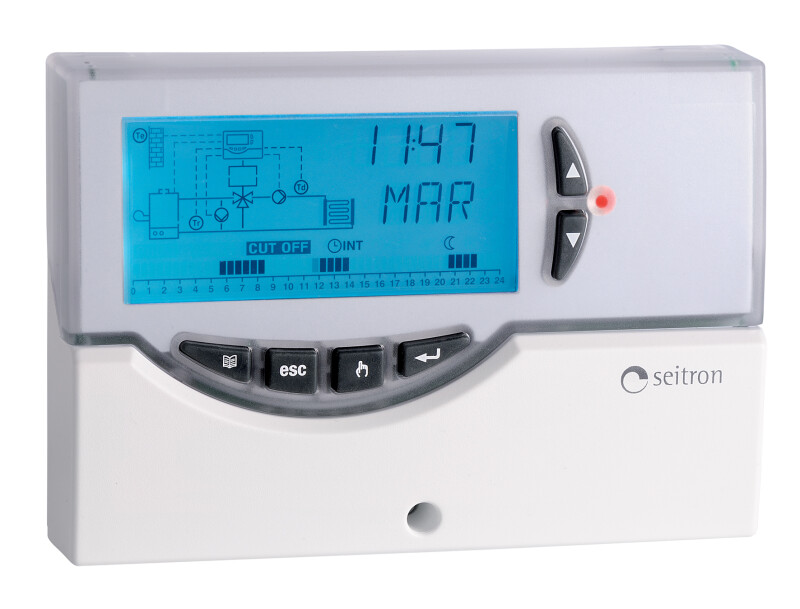

Climate regulator RKP01M - Seitron

Climate regulator for systems with traditional heating and / or floor heating. It allows to manage 3 outputs (3 + 1 Relays) and 4 inputs Probes, 1 input for the thermostat environment and input 1 for the Remote Controller.

Selecting a plant, the climate regulator automatically manages the inputs and outputs used in the plant chosen.

The types of plants are the following:
1) A 3-way valve and the circulation pump is not expected to use the recirculation pump, type of management with PI 3-point adjustment.
2) A 3-way valve and the circulation pump , optional use of the recirculation pump, type of IP management , adjustment to 3 points.
3) Burner flame (stage 1) and the circulation pump, optional use the recirculation pump , type of management ON - OFF , 2-point control.
4) Two-flame burner (2-stage) and the circulation pump, optional use the recirculation pump, type of management ON - OFF , 2-point control.
