Bini Clima's C Series: compact, high-performance, and versatile hydronic terminals.

In the hydronic air conditioning sector, terminals represent an essential element for ensuring well-being in commercial and industrial environments . The Bini Clima C series stands out as a complete and high-performance solution, designed to flexibly adapt to different system configurations, thanks to a comprehensive range, high performance, and technical options that increase efficiency and capacity.

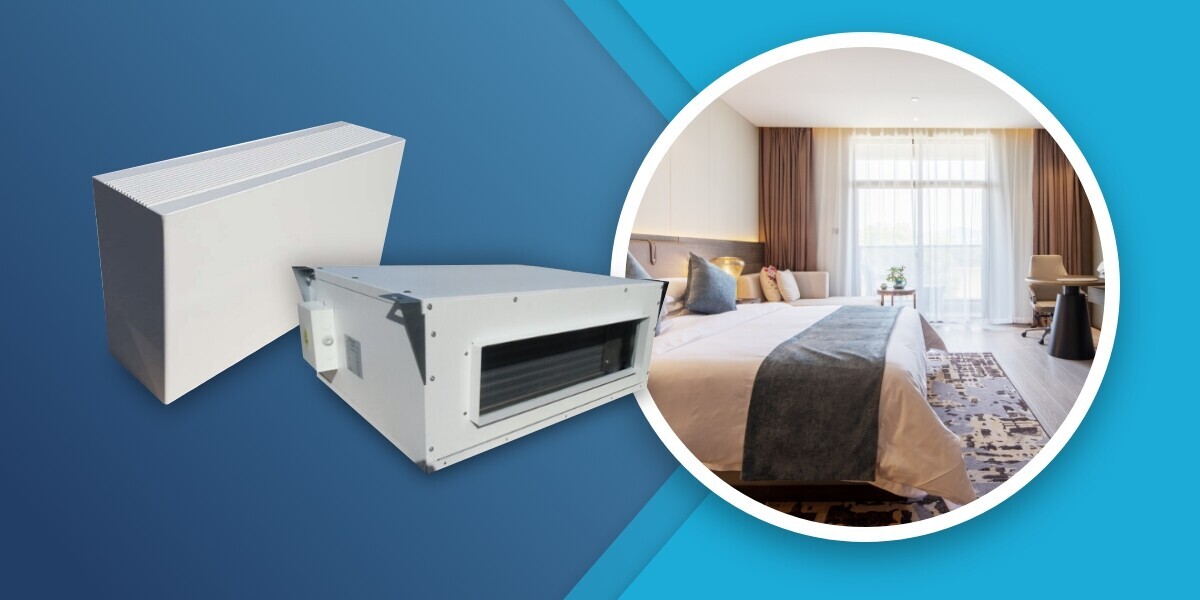

CM, the compact and high-performance units, ideal for exposed installations

CM terminals are designed for surface installation, with flow rates up to 1620 m³/h and cooling capacities up to 11 kW. They can be installed both vertically and horizontally, making them particularly suitable for environments requiring large cooling and heating capacities. Available in six sizes (from CM-09 to CM-32), they guarantee extremely quiet operation for units of this type.

CK, the compact and high-performance units, ideal for built-in installations

CK terminals are designed for duct or recessed installation, both vertically and horizontally, making them particularly suitable for discreet installation in false ceilings or technical spaces. Available in six sizes (from CK-09 to CK-32) , they offer an air flow rate of up to 2825 m³/h, with a useful head of up to 150 Pa: characteristics that make them perfect for ducted systems or for environments with high air distribution needs.

Programmable AC and EC fan motors: tailor-made solutions for every need.

The C series includes two main versions:

• C standard AC: with multi-speed asynchronous motor (AC), ideal for traditional systems.
• C with EC motors: with brushless EC motor with 0–10 V modulating control, for precise management and superior energy efficiency.

Both solutions are equipped with double-inlet centrifugal fans mounted on anti-vibration mounts. The motor is directly coupled to the fan casing, and the support spider is optimized to eliminate air turbulence (also thanks to the lack of a traditional shaft). This ensures much quieter performance than traditional fans and long-lasting reliability. The fan motor is electronic and programmable, thus providing extreme versatility in managing ventilation, performance, and silence.

The C-DS version: advanced insulation for maximum comfort

For applications requiring superior thermal and acoustic insulation, Bini Clima offers the C-DS variant, featuring a double-wall structure. This configuration improves insulation and makes the unit particularly suitable for hospitality facilities, schools, offices, and other settings where comfort and extra silence are essential.

Batteries and components optimized for high performance

The C series is equipped with 2- or 4-pipe coils, made with copper pipes and high-efficiency aluminum fins, capable of operating at temperatures up to 100°C and pressures up to 16 bar. The condensate collection tray, which also extends under the valve, is insulated with 5 mm insulation material and can be made of stainless steel upon request.

The equipment is completed by:

• Washable synthetic fibre air filter on galvanised frame, easily accessible and replaceable.
• Drains DN 18–20 mm , with slopes designed to ensure correct flow even in critical conditions.
• Accessories available to customize the installation , such as supply and return plenums, dampers, probes and valves.

One terminal, many applications

Thanks to its compact configuration, installation flexibility and the availability of AC and EC versions, the Bini Clima C series is perfectly suited to:

• buildings with ducted ceiling systems;
• offices and commercial environments where maximum discretion and silence are required;
• accommodation facilities , hotels and spas;
• technical or industrial environments where high air flows and precise climate control management are required.

Attention to detail by Bini Clima

Bini Clima designs and manufactures each unit with a focus on quality and customization. The C Series is a concrete example: each component is designed to ensure long life, low consumption, and easy maintenance. The numerous customization options make this range one of the most versatile on the HVAC market.
