ECOCOMFORT 3

BREATHE CLEAN AIR AND SAVE ENERGY

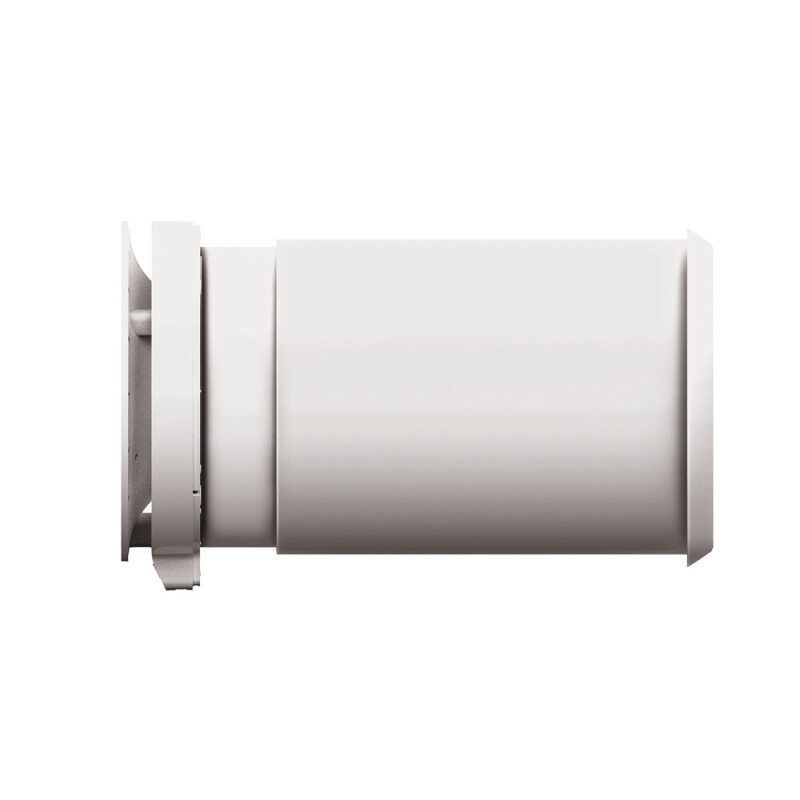

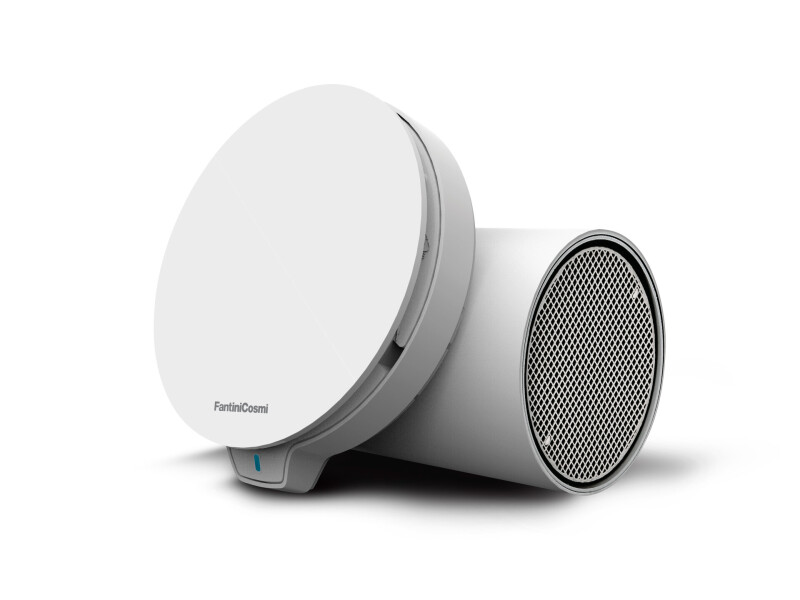

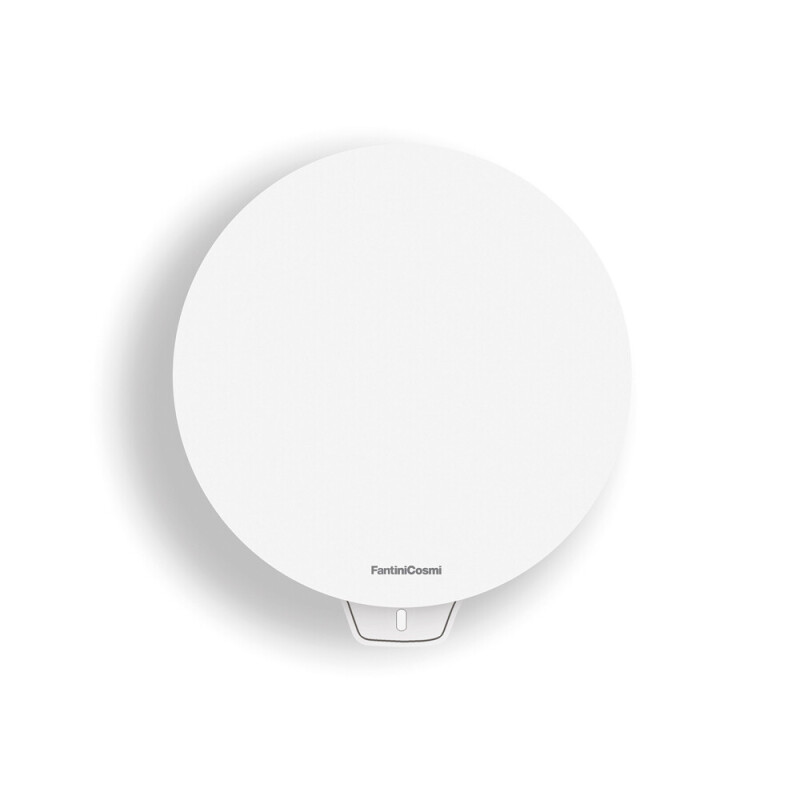

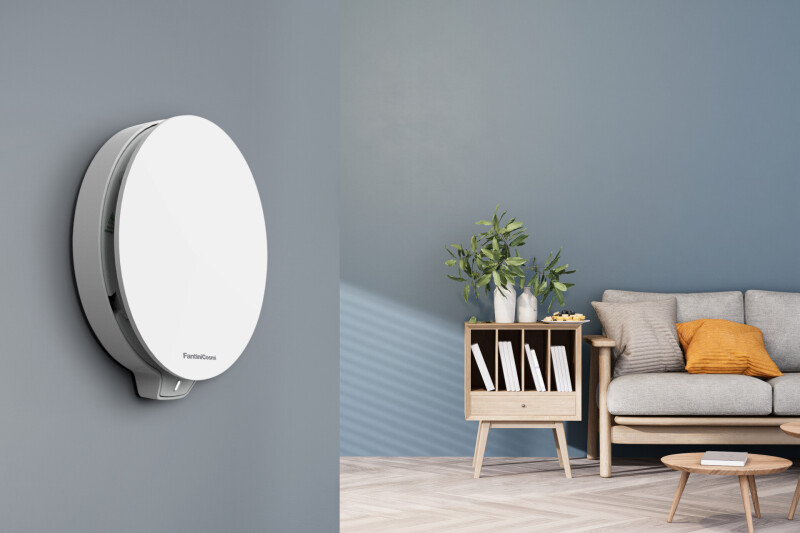

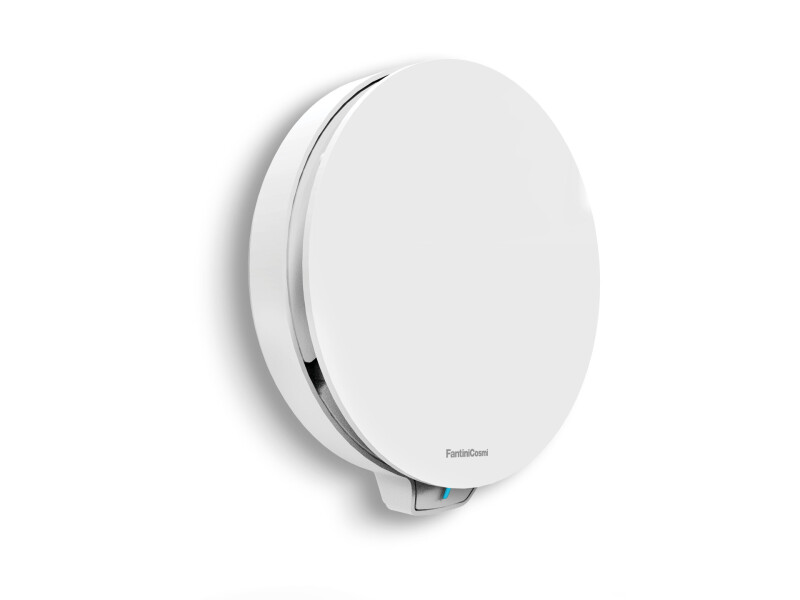

ECOCOMFORT 3 is the new high‑efficiency single-room heat recovery ventilation unit: a ventilation solution that ensures continuous and constant air exchange without the need to open windows. It prevents the formation of humidity and mould and recovers the heat from extracted air, significantly reducing heating and cooling energy consumption.

SMART SENSORS

Thanks to its integrated relative humidity, eCO₂, temperature and twilight sensors, ECOCOMFORT 3 continuously monitors indoor air quality and automatically adjusts its operation to ensure optimal comfort and well-being, with no manual intervention required.

MAIN FEATURES

• Anti‑UV and antistatic ABS plastic housing
• Operating temperature: -20°C to +50°C
• Compact dimensions and easy installation
• Multifunction button with multicolour LED
• Telescopic duct suitable for all wall thicknesses
• Flexible external grille, installable from inside or outside
• ISO Coarse filter compliant with UNI EN ISO 16890:2017
• Acoustic, thermal and anti‑condensation insulation panel
• Airflow straightener for enhanced performance

PACKAGE CONTENTS (code AP21020)

• Ventilation unit with regenerative heat recovery core and telescopic duct
• External grille

Advantages

ALWAYS CONNECTED, WHEREVER YOU ARE
The ECOCOMFORT 3 multiconnectivity system integrates with the Intelliclima+ app, allowing you to configure and manage all ventilation modes as well as Fantini Cosmi smart thermostats.
A single platform to control ventilation, heating and cooling systems — even remotely — via smartphone or tablet.

DYNAMIC GEOLOCATION
The geolocation function adaptively calculates the real approach or departure time from the home, optimising comfort and energy consumption.

SUMMER FREE COOLING
In summer, when the outdoor temperature is lower than the indoor temperature, the Free Cooling function activates automatically to improve thermal comfort without wasting energy.

EASY SHARING
With the Intelliclima+ app, you can share unit management with the users you choose.

NOW ALSO WITH REMOTE CONTROL

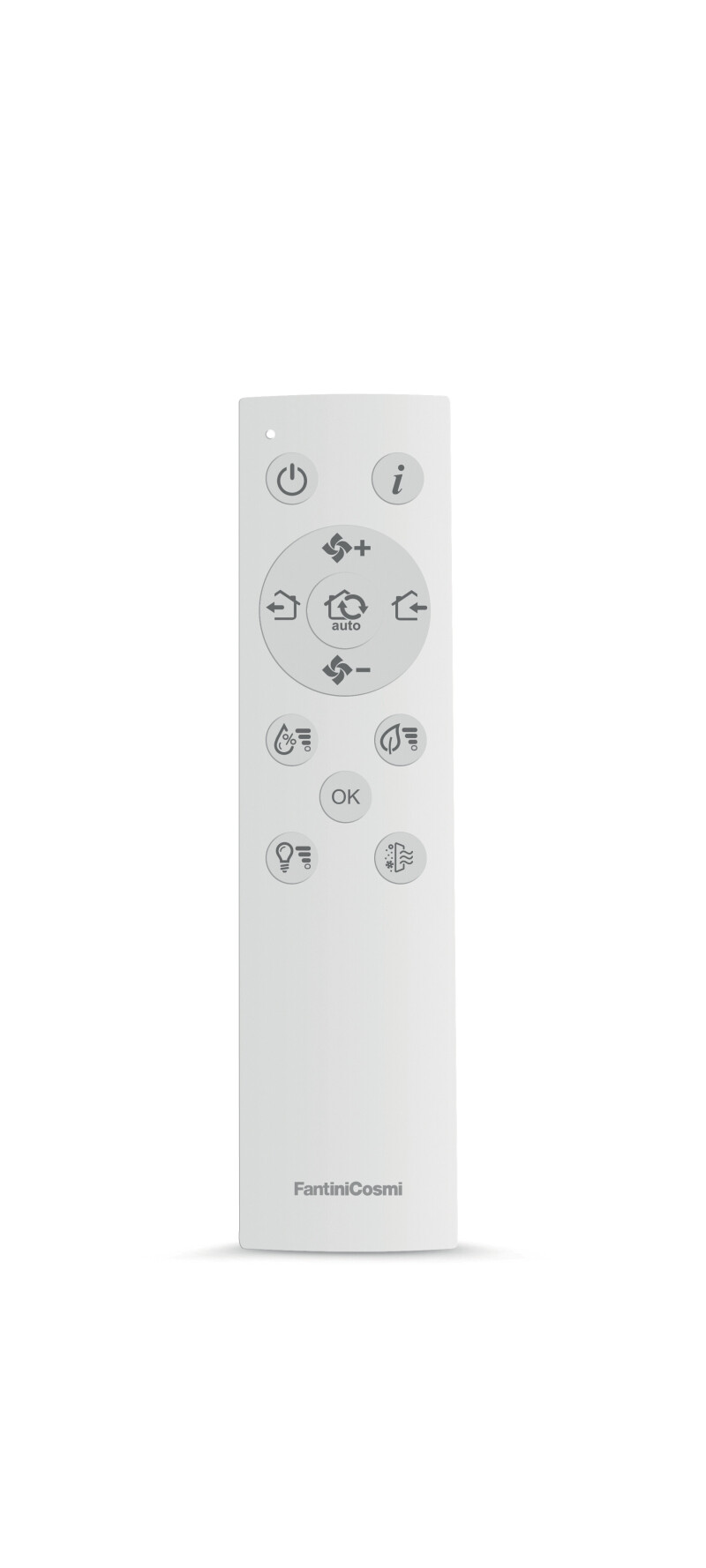

The new version of ECOCOMFORT 3 (code AP21020) introduces a dedicated remote control (code AP6R6306150, sold separately) for even more immediate operation.
The new multicolour LED with acoustic signal provides clear and instant feedback on the active function.
Full comfort management remains available through the Intelliclima+ app.

• Nominal diameter: 160 mm

• Wi-Fi and Bluetooth Low Energy 5.0 multiconnectivity system

• Sensors: air-flow temperature, room temperature, relative humidity, brightness, indoor air quality (VOC)

• SMART functions Configuration and management via App

• Installation on external perimeter wall

• Airflow rate up to 100 m³/h*

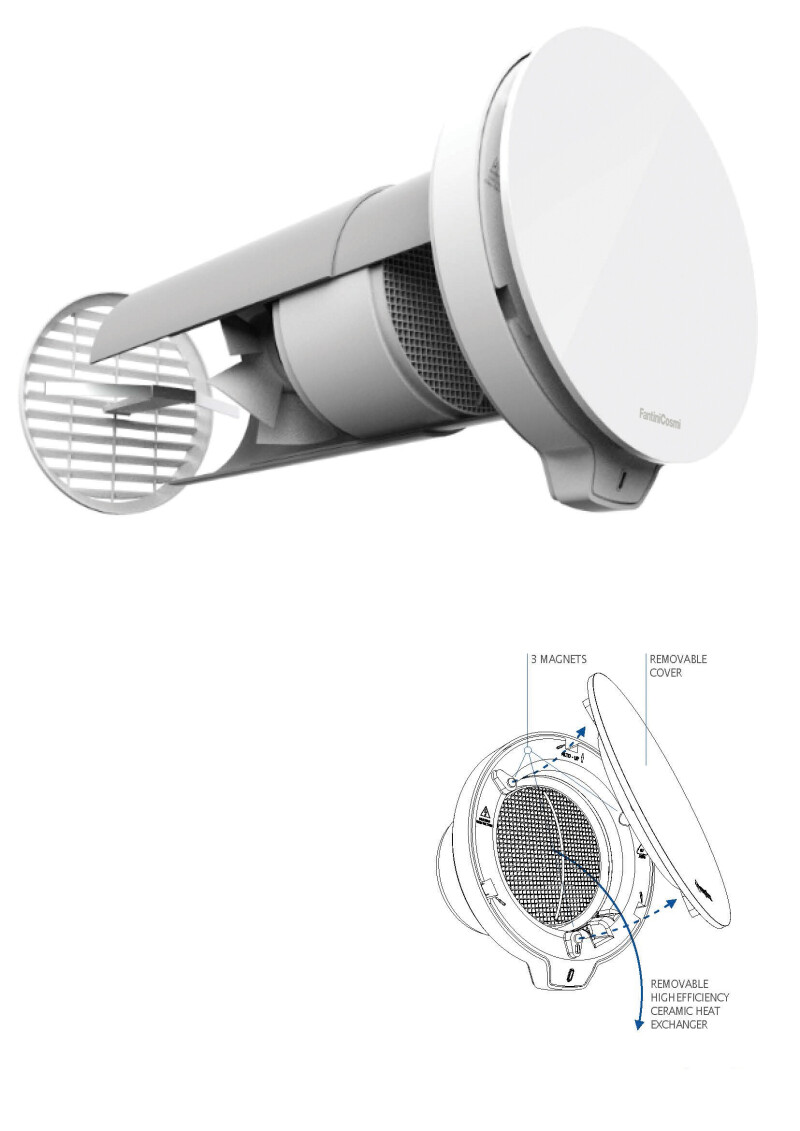

• High-efficiency regenerative ceramic heat exchanger (up to 90%)

• Summer Free-Cooling

• Ultra-low noise level

• Facade sound insulation (D₂mnTw): 40 dB

• Power supply: 230V~ 50Hz

• Transmission frequency: Wi-Fi 2.4 GHz; Bluetooth Low Energy 868 MHz

• Protection rating: IPX4

• Remote firmware update via App

• Optional IR remote control

  \* Boost speed only; not manually selectable.

HIGH PERFORMANCE
The optimisation of the fan and motor has enabled ECOCOMFORT 3 to achieve a significant increase in airflow, reaching up to 100 m³/h, ensuring proper ventilation even in large rooms and making it a truly unique product in its category.
ECOCOMFORT 3 also guarantees optimal performance in ducted installations up to 3 linear metres, or 2.5 metres with one bend.
