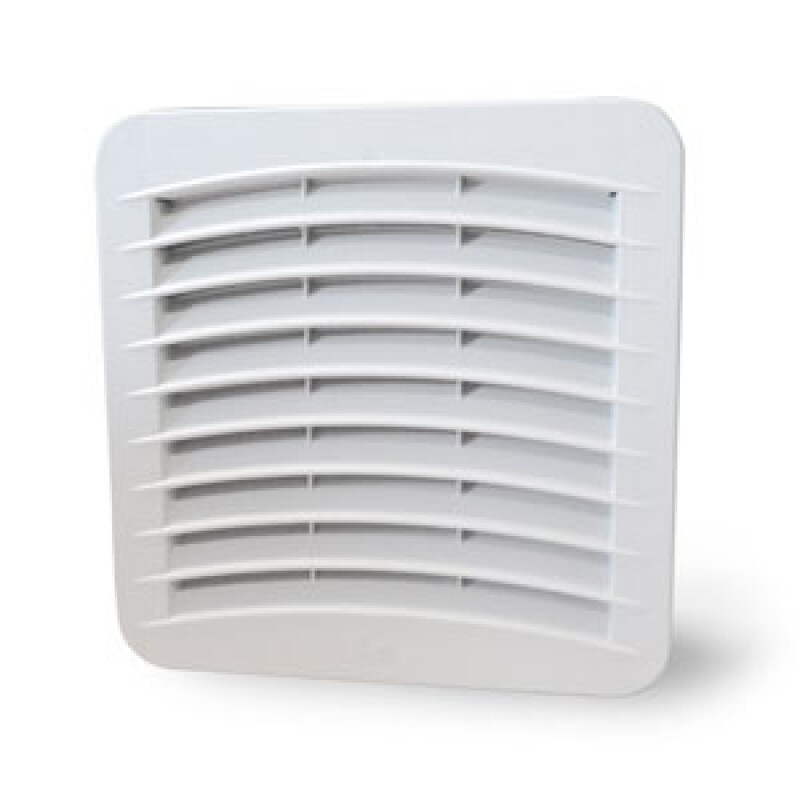

The new attractive, modern design of Kryos² filter fans combines air flow optimisation and an high protection degree. The clips allows an easy and fast mounting, without using tools or screws, improving the sealing between the cabinet and the environment. With the additional filter is possible to increase the Kryos² Protection Degree to IP55. In this way Kryos² can be used in more severe ambient conditions without any risk to the equipment.
On Kryos² filter fans (except 3001 & 3002 series) is possible to reverse the flow direction from pull to push. In that way is easy to choose always the best configuration for every requirement.
The entire range is available with CE & UL certification. Kryos² filter fans is completely compatible with Kryos GKF/V cut outs.


- Filter Fans
- Screwless
- Designed in ABS BLEND (RAL7035)
- Air Flow 35-990 m³/h
- Reversible air flow, push /pull (except GHV3001/2)
- Easy maintenance and filter substitution
- IP54 protection degree (IP55 optional)
- Electrical connections with spring terminals
- MBTF: 40000 hours

Technical features
